We provide custom-fabricated sheet piles manufactured according to customer drawings and project specifications. Our piles can be produced in different sizes, thicknesses, and lengths to meet specific structural and industrial requirements.
Sheet piles are thin structural interlocking sections—typically made of steel, vinyl, or wood—driven into the ground to create a continuous barrier for earth retention, stabilization, and groundwater control.
Introduction to sheet piling
- Definition: Prefabricated sections with interlocking edges (joints) that form a tight wall to resist lateral pressure from soil or water.
- Materials: Most commonly constructed from high-strength steel, but options include reinforced concrete, timber, and vinyl (PVC).
- Mechanism: Driven or pushed into the earth using vibratory hammers, impact hammers, or hydraulic presses.
Key applications
- Cofferdams: Temporary water-tight enclosures pumped dry to allow safe construction of bridge piers, locks, or dams.
- Waterfront structures: Bulkheads, quays, wharves, piers, and seawalls protecting coastal or river edges.
- Excavation support: Temporary or permanent retention systems for deep basements and underground parking garages.
- Cut-off walls: Environmental or hydraulic barriers used to stop water seepage or contain underground pollutants.
- Slope protection: Stabilizing highway embankments and preventing riverbank erosion.

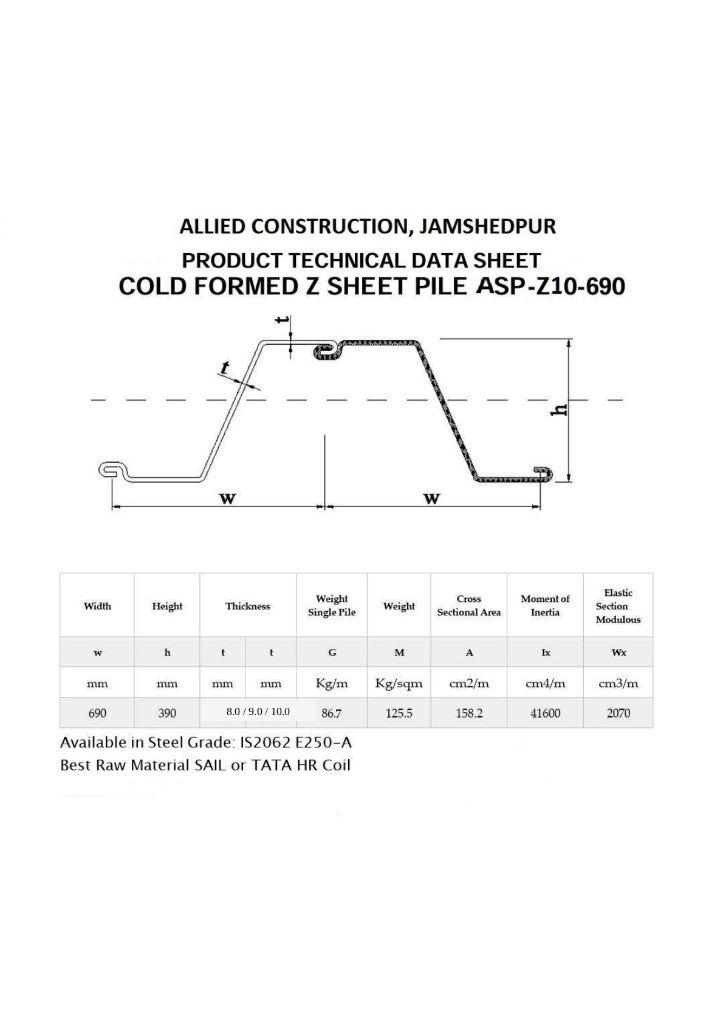

Product technical data sheet
Cold formed Z sheet pile ASP-Z10-690 — Allied Construction, Jamshedpur
| Parameter | Symbol | Units | Values |
|---|---|---|---|
| Width | w | mm | 690 |
| Height | h | mm | 390 |
| Thickness | t | mm | 8.0 / 9.0 / 10.0 |
| Weight single pile | G | Kg/m | 86.7 |
| Weight | M | Kg/sqm | 125.5 |
| Cross sectional area | A | cm²/m | 158.2 |
| Moment of inertia | Ix | cm⁴/m | 41600 |
| Elastic section modulus | Wx | cm³/m | 2070 |
Steel grade: IS2062 E250-A. Raw material: SAIL or TATA HR coil.
